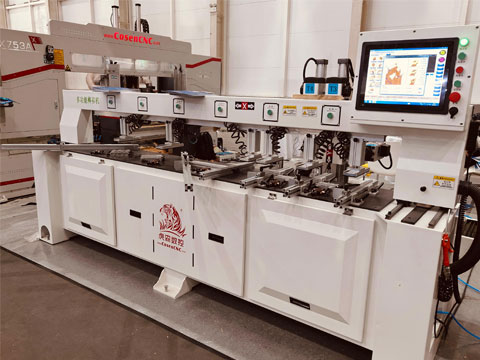

多功能榫卯一體機配置 |
||
|
序號 |
部件名稱 |
備注 |
|
1 |
系統： |
定制專用榫卯結構系統（配備手輪對刀儀） |
|
2 |
顯示器尺寸: |
15寸 工業電腦Windows系統 |
|
3 |
伺服電機: |
0.75KW*3 |
|
4 |
高速主軸電機 |
4.5kwX1個 3.5kwX3個 機頭配備吸塵裝置 |
|
5 |
電器: |
正泰 |
|
6 |
床身工藝： |
時效處理 五面加工 |
|
7 |
加工高度： |
10-90mm |
|
8 |
工作臺有效行程： |
2200MM (常規)可依工件不同定制 |
|
9 |
電機轉速： |
18000r/min |
|
10 |
裝機總共率： |
17.5kw |
|
11 |
整機重量： |
900kg |
|
12 |
外形尺寸: |
3600X1600X1500mm |
|
13 |
主要功能： |
公榫、母榫、45度互插榫、格肩V榫、棕角榫、抄手榫抱肩榫、抽屜燕尾榫、斜槽、圓槽、開槽打孔、支持導圖工藝 |
So far this automatic milling machine is as good as I expected and serves its purpose in my gunsmith shop to repair, design, modify, or build guns. Sturdy enough with its structure for metal fabrication. If you take the time to learn the CNC controller software, the mill table will be easy to use and provide excellent quality works. In addition, there are some upgrade kits to bring it to the next level. I recommend ST7090-2F for the price and quality.
I got this mill for close to a month, and have used it numerous time to make custom car part prototypes out of aluminum. I have also made a few milled coinages too. It has worked well for me. Any time I have had a question or concern I received a very prompt response from support. They are courteous and helpful. Great power tool with superior customer support. I will recommend this CNC mill and company.
I got my CNC mill in perfect condition. As soon as I opened the package, I knew to expect quality. Everything was there. You need some imagination to follow the build instructions. Not a big deal to change, but be careful. Overall, it does feel like quality. Two hours, and it was done. Looks good and the control panel does what youd expect.
??? ????? ??? ???????. ????? ??????? ??? ????? ??? ????????? ???, ??? ???? ???? ???? ????? ???? ??? ?????? ???? ??? ?????? ??????????? ??????
The product agrees with the specified. I use this machine processing shoe mold. Processing speed is satisfactory. I recommend this seller.
