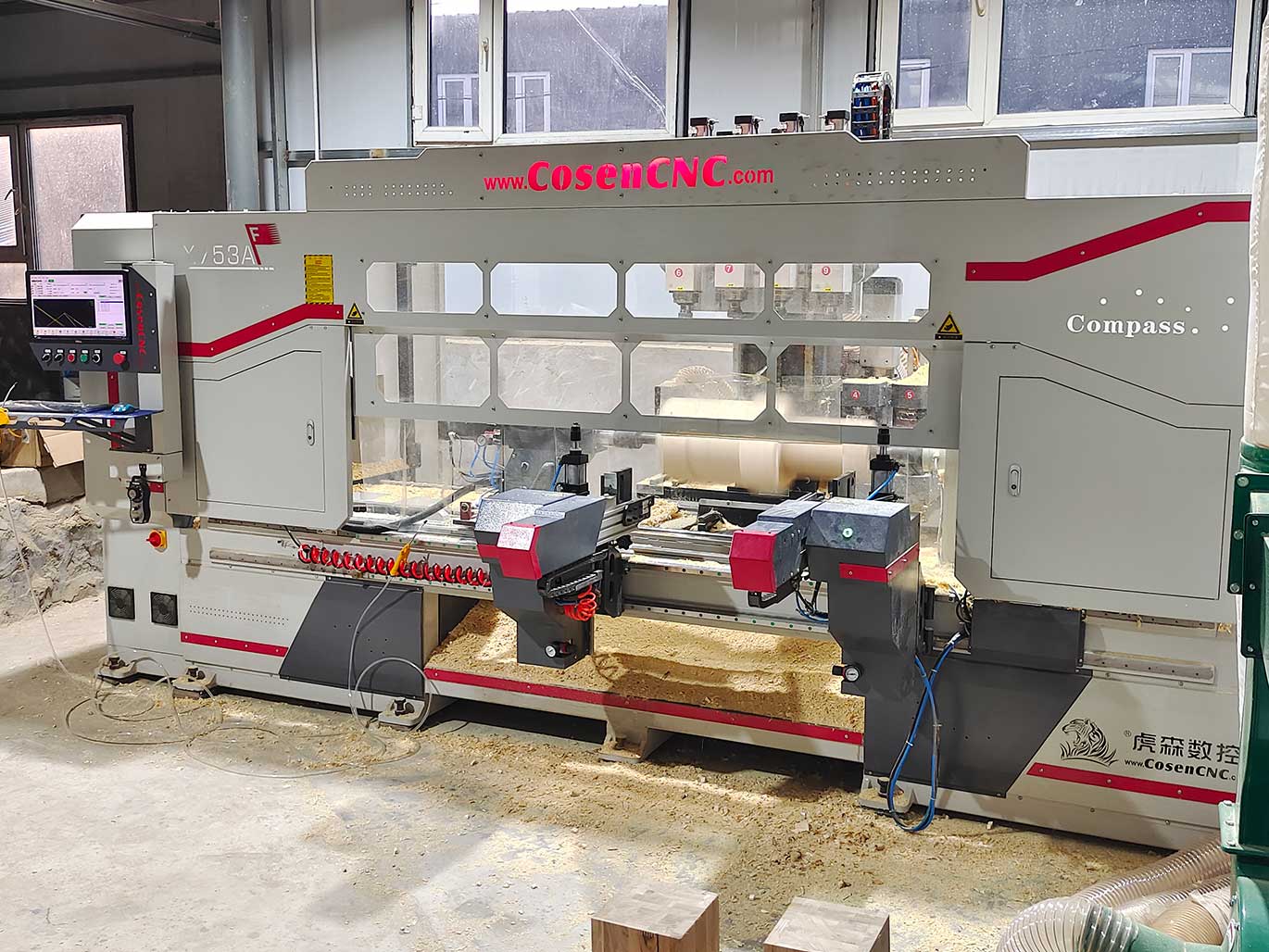

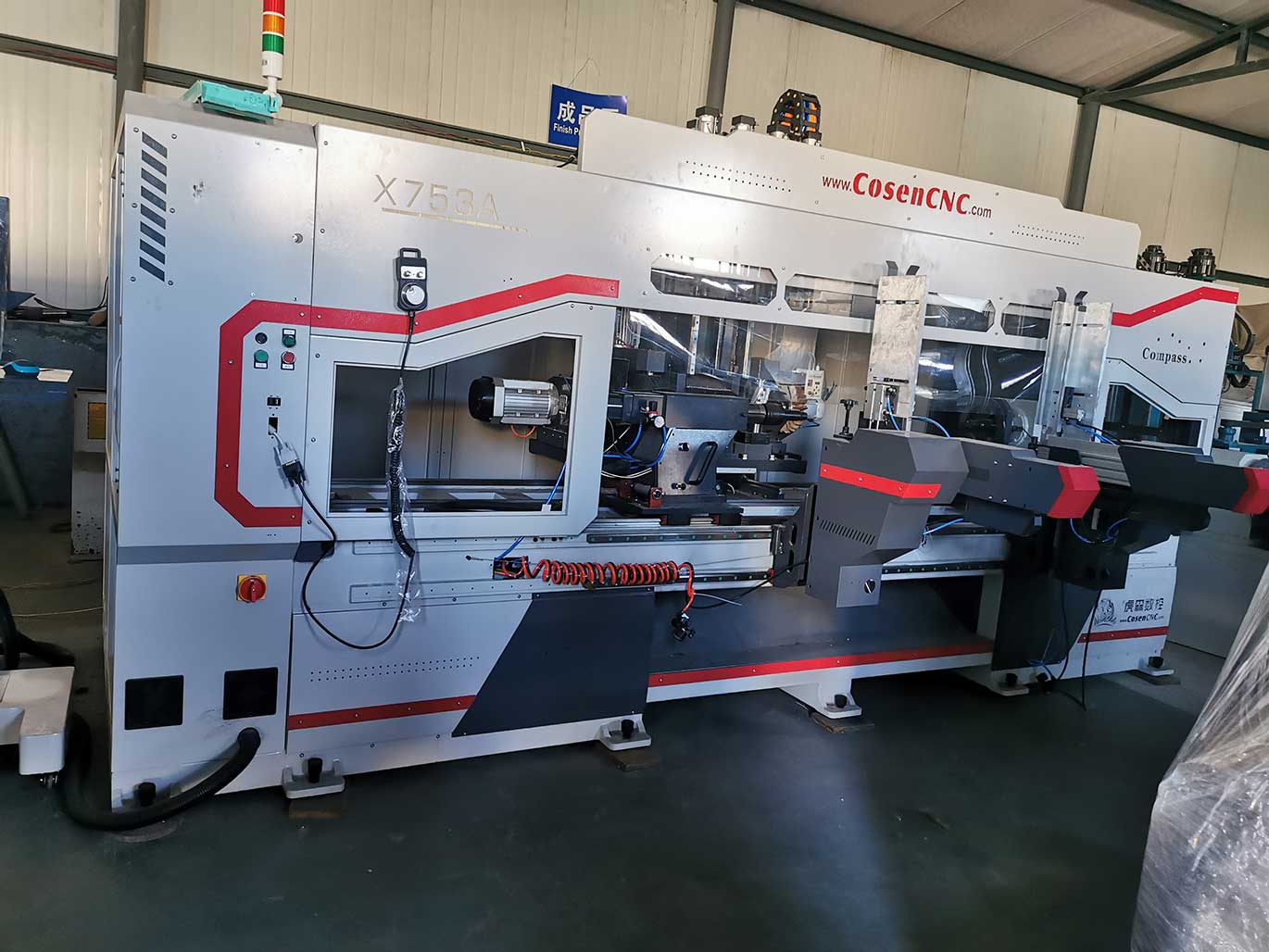

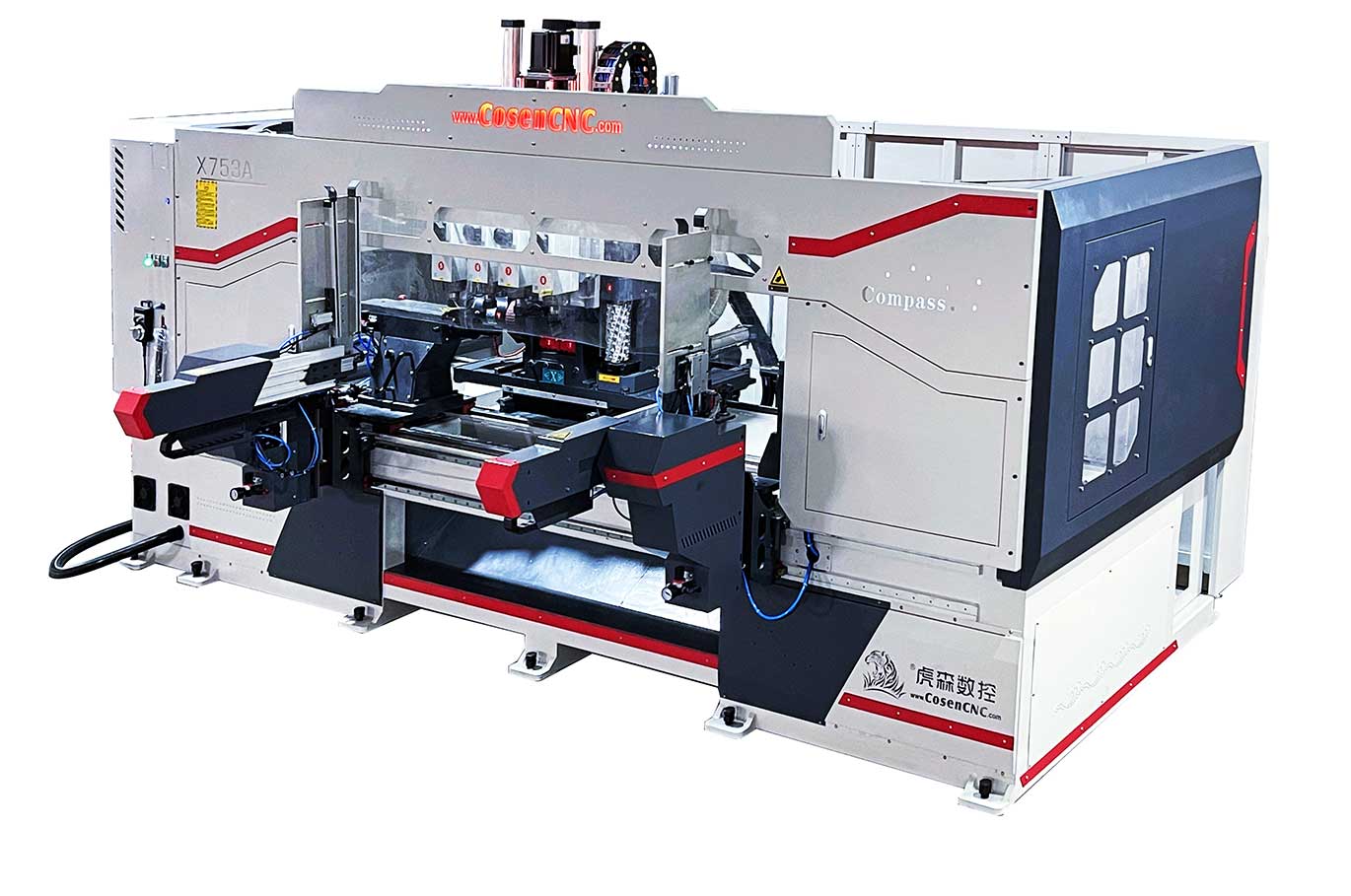

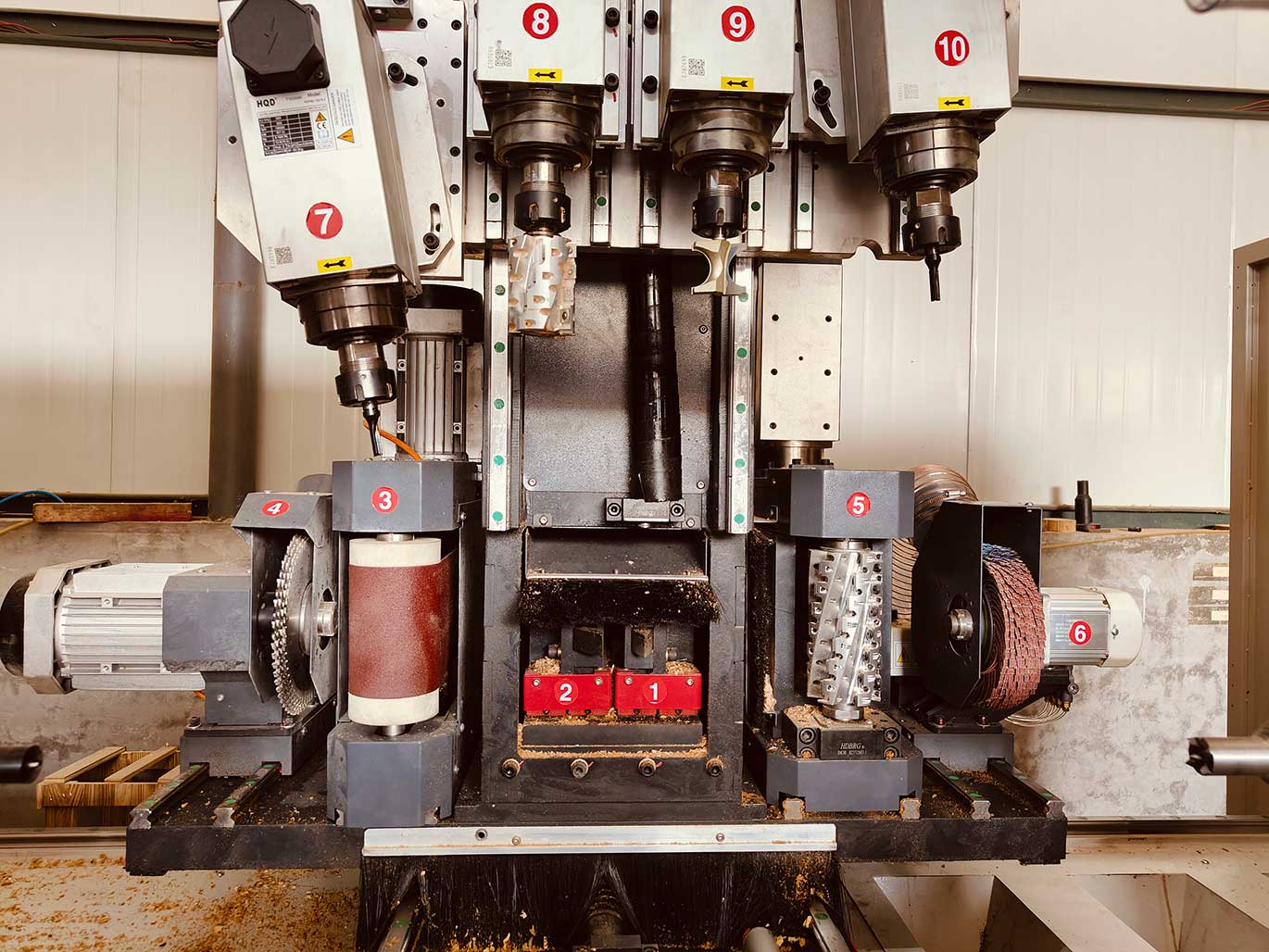

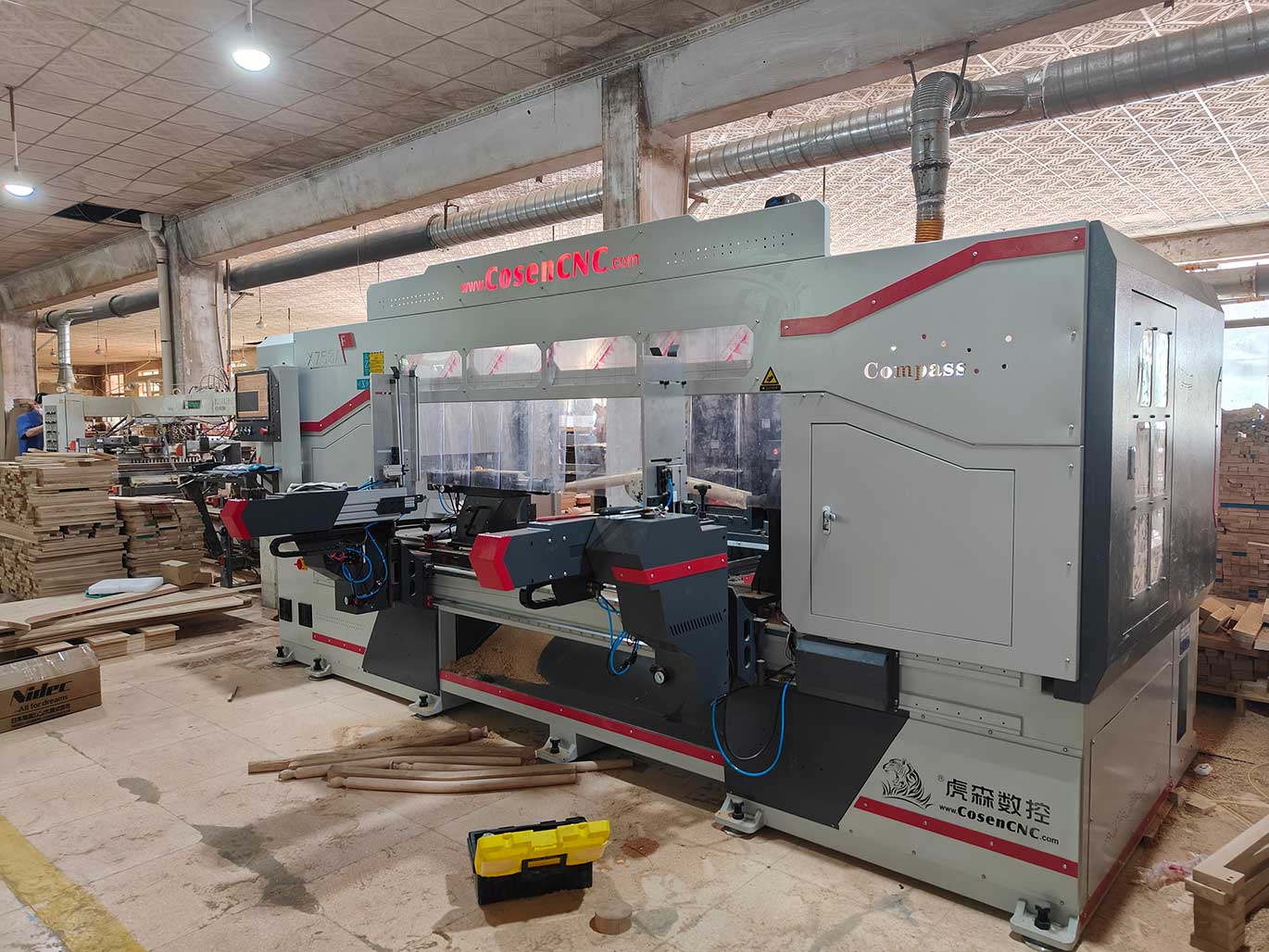

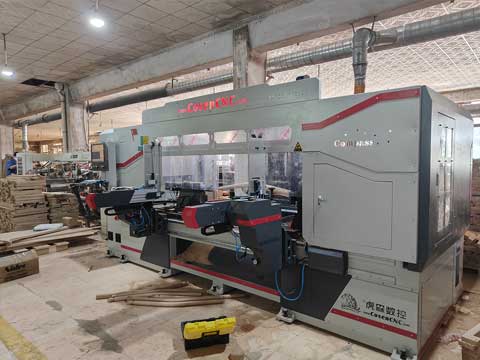

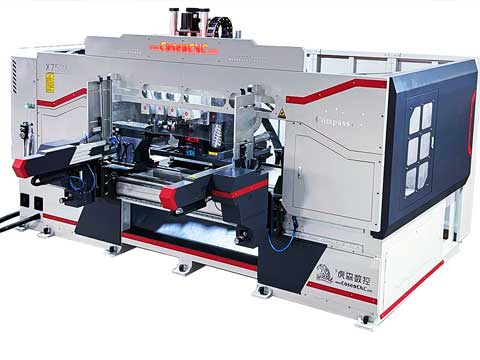

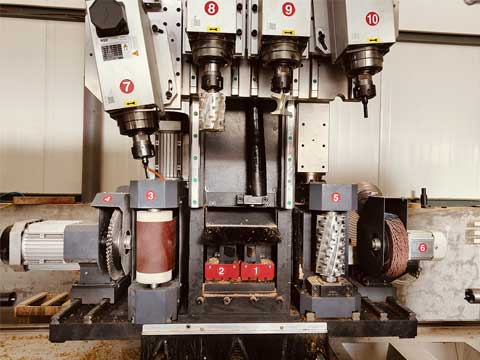

設備特點：這是一款四軸10工序車銑復合加工中心，可實現自動上料、雙刀車木、立柱刨銑、圓砂打磨、鋸片大吃刀量切削、四工序主軸（可實現打孔、倒角、拉線、榫槽、榫孔、鏤空、雕刻等功能，兩側主軸電機可手動調整角度實現15度以內斜孔加工），此型號設備功能更多，配置更齊全，適合加工更加復雜的工件，如臺球桌腿、異形復雜實木家具工件、實木家具腿等一次成型。
配置自動送料裝置，縮短了產品制造工藝鏈，導軌、滑塊、絲桿等配件均采用進口品牌常年合作，臺達伺服電機驅動等多種機電高配，大大提高了加工精準度。設備穩定，高強度五面銑全焊接一體化的重型床身設計，提高了對難切削材料的重力加工能力。正版專用操作系統穩定精準度高，設備操作便捷，設備配有自動對刀儀，22寸彩色大液晶顯示屏，配備手輪引導，可實時仿真加工模擬，通過電腦鍵盤一鍵式操作，方便快捷。 設備生產八年時間細節成熟功能完善，廣受國內外客戶好評。
|
名稱 |
介紹說明 |
|
外形尺寸 |
4500*2200*2200mm |
|
機身結構 |
五面銑加工整體焊接熱處理床身 |
|
|
Heavy duty overall welding heat treatment bed |
|
加工范圍 |
1500*300 |
|
控制系統 |
V10 四軸十工序系統 |
|
XYZAB |
X:2400mm Y :350mm Z:450mm A：∞ |
|
傳動方式 |
Import:large modulus high precision helical rack Z axis TBI ball screw CSK linear guide |
|
四軸減速機 |
精密低回差減速機 Planet reducer |
|
主軸 |
6KW 風冷主軸（轉速15000r/min) Air cooling spindle |
|
驅動系統 |
伺服驅動系統 Servo motor |
|
機柜 |
獨立風冷CNC機箱 Independent air-cooled CNC cabinet |
|
電壓 |
AC 380V ± 10% 50/60Hz |
|
氣壓 |
0.8MPa |
|
凈重 |
3200KG |
