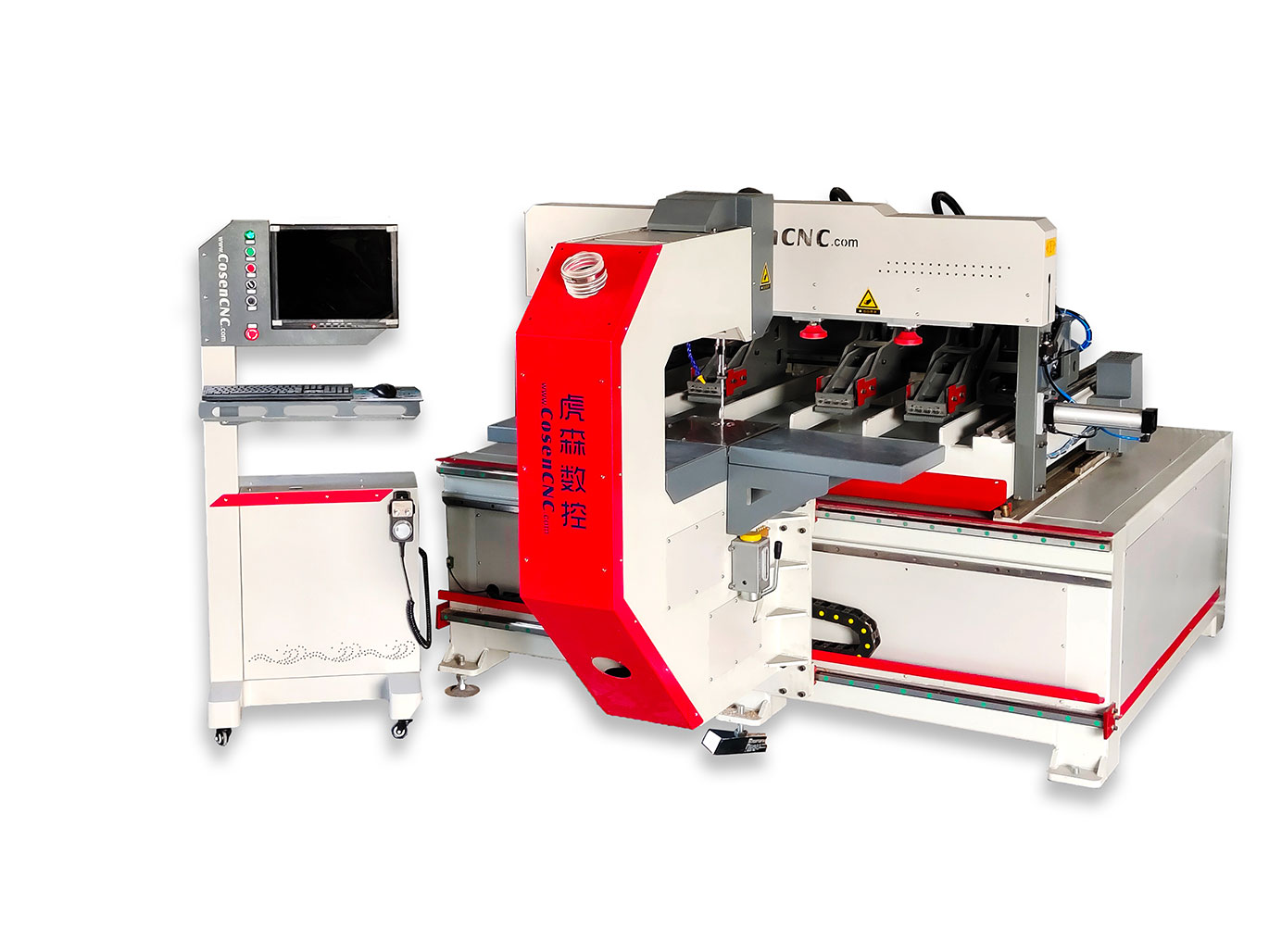

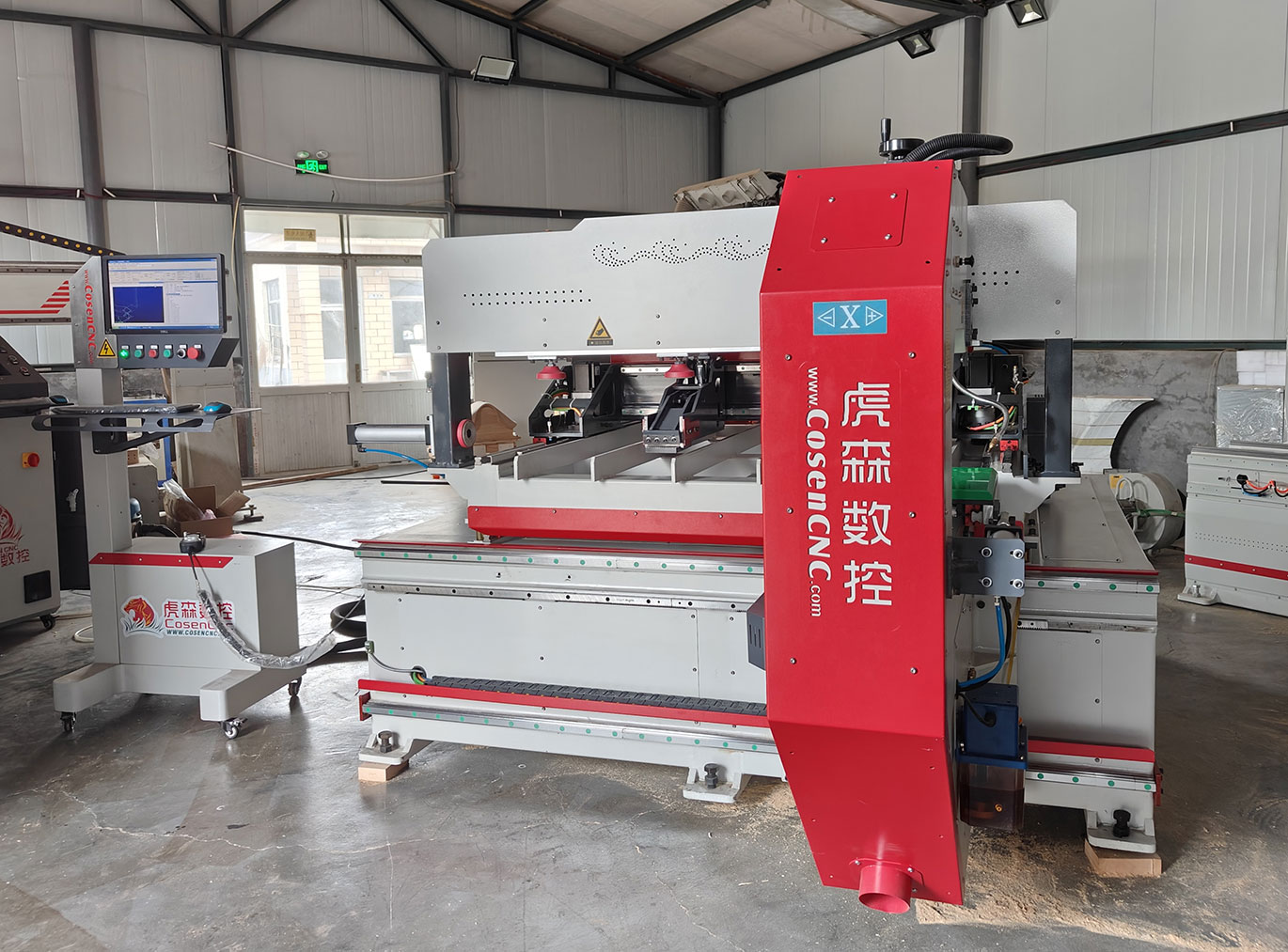

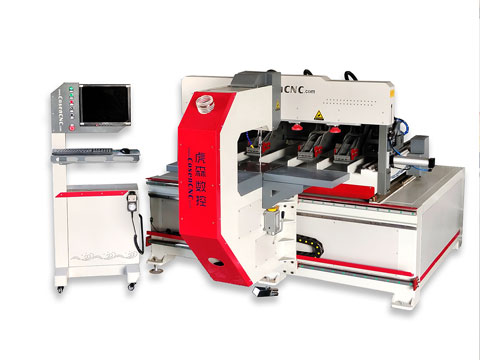

數控鋸銑機，又稱實木開料機，是一款用于實木板開料、異形切割、造型切割的數控自動化設備。解決傳統帶鋸切削死角、拐彎幅度小和加工表面不光滑等問題。顛覆傳統實木下料工序、劃線、手動開料、鑼銑三道工序，降低人工成本。降低生產事故，提高生產效率。
任意切割：加工角度沒有限制，可360度無死角任意加工，加工后表面光潔度很高，無需再上立銑，可以直接打磨。
安全：科學的自動報警保護系統，設置自動安全監測報警控制系統和故障自動報警停機系統,可降低勞動強度。通過預設的程序自動加工，加工過程中無需人工干預，避免了人為誤差，不僅提高了加工精度，又確保在使用過程中的安全性，大大減少工傷事故。
節能：精密的加工路線，使得后序更省工，省電；廢料少.
省時：高速的鋸銑刀進給和回退速度，鋸銑刀進退全自動控制；大板自動切割，小板可拼版切割；CAD 繪圖加工，省去人工劃線、人工上鋸、二次立銑等復雜加工工序，加工效率高，出貨快。
省料：精密的鋸銑刀路線，拼版間隔小，一般產品能省材料10%以上；自動壓料進料，無需為人為干預。
環保：加工無污染，可選配碎木自動吸塵器。
控制系統: 維宏控制系統, 具有高速，高精度，高穩定性等優勢，好操作。
|
型號 |
S515 |
|
最大加工尺: |
1500mm*1500mm |
|
最大加工厚度: |
150mm |
|
最大加工速度: |
0-10M/min |
|
繪 圖 軟 件: |
CAD ArtCam |
|
齒條： |
High precision module rack |
|
主 軸 電 機: |
2*7.5KW風冷高速主軸 |
|
減速機： |
Imported reducer |
|
變頻器: |
15KW high frequency converter |
|
使 用 氣 壓: |
0.6-0.8mpa |
|
總 重 量: |
約2000kg |
