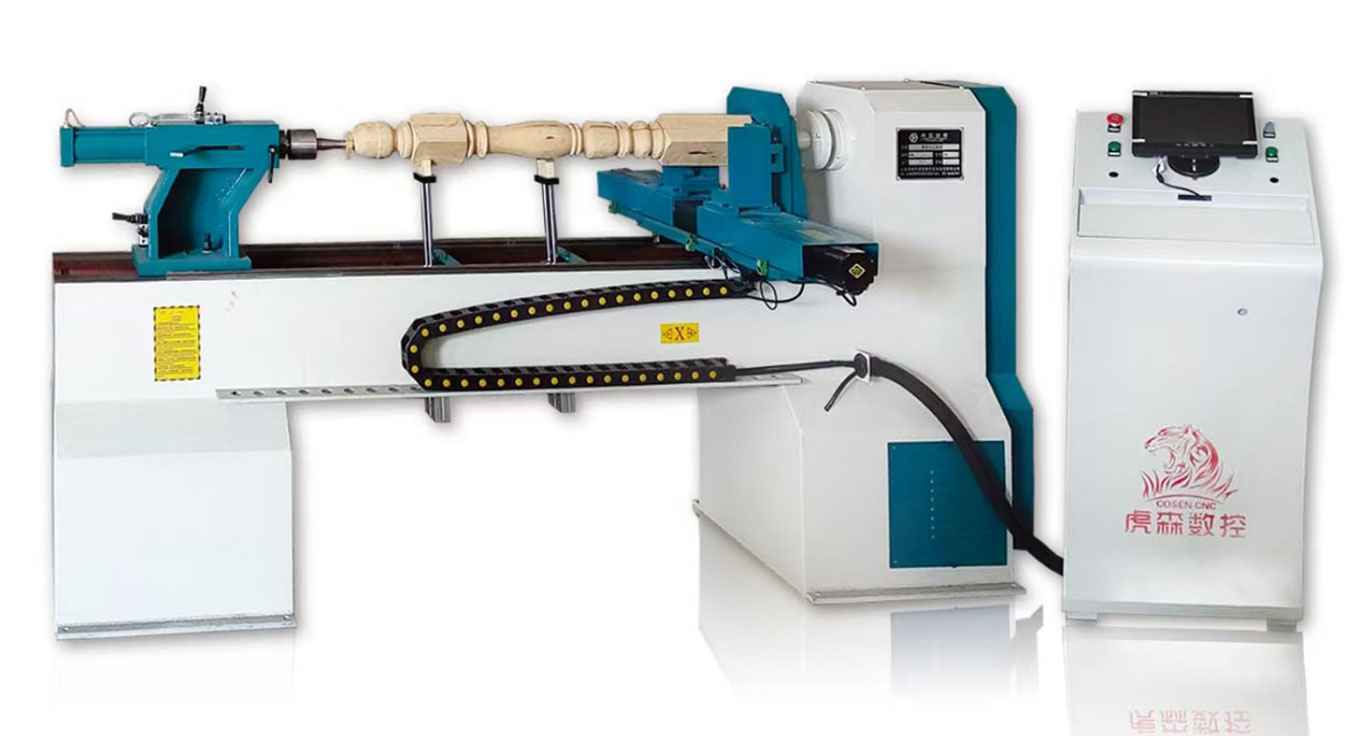

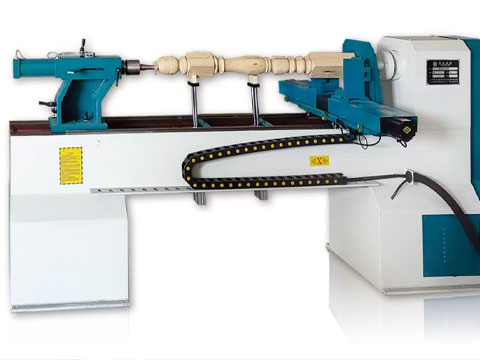

單軸智能雙刀數控木工車床-S系列。整體設計合理，床身結構穩定，采用整體鑄造，搭配高研磨直線方軌和高精密滾珠絲杠，能高效減震，減少磨損，提高精度。配備成熟的CNC控制系統，操作便捷，能精準執行加工指令。雙刀設計獨具優勢，前后刀協同工作，粗精車一次完成，極大提升加工效率與精度，加工精度可達0.10mm 。適用于樓梯立柱、家具腿等回轉體木制品車圓加工。
|
單軸智能雙刀數控木工車床-S系列 |
|||
|
型號 |
CNC315S |
CNC415S |
CNC425S |
|
加工尺寸 |
1500mm*300mm |
1500mm*400mm |
2500mm*400mm |
|
電機功率 |
5.5KW（可按需定制） |
|
|
|
控制形式 |
CNC電腦/手柄 |
CNC-PC/DSP |
|
|
動力 |
無級變速CVT |
|
|
|
機床類型 |
木工 Wooden |
|
|
|
送料速度 |
3000mm/min |
|
|
|
工作電壓 |
AC380V/3PH/50HZ |
|
|
|
設備重量 |
1450KG |
1650KG |
2050KG |
|
外形尺寸 |
2750mm*1300mm*1300mm |
2700mm*1400mm*1400mm |
3700mm*1400mm*1400mm |
